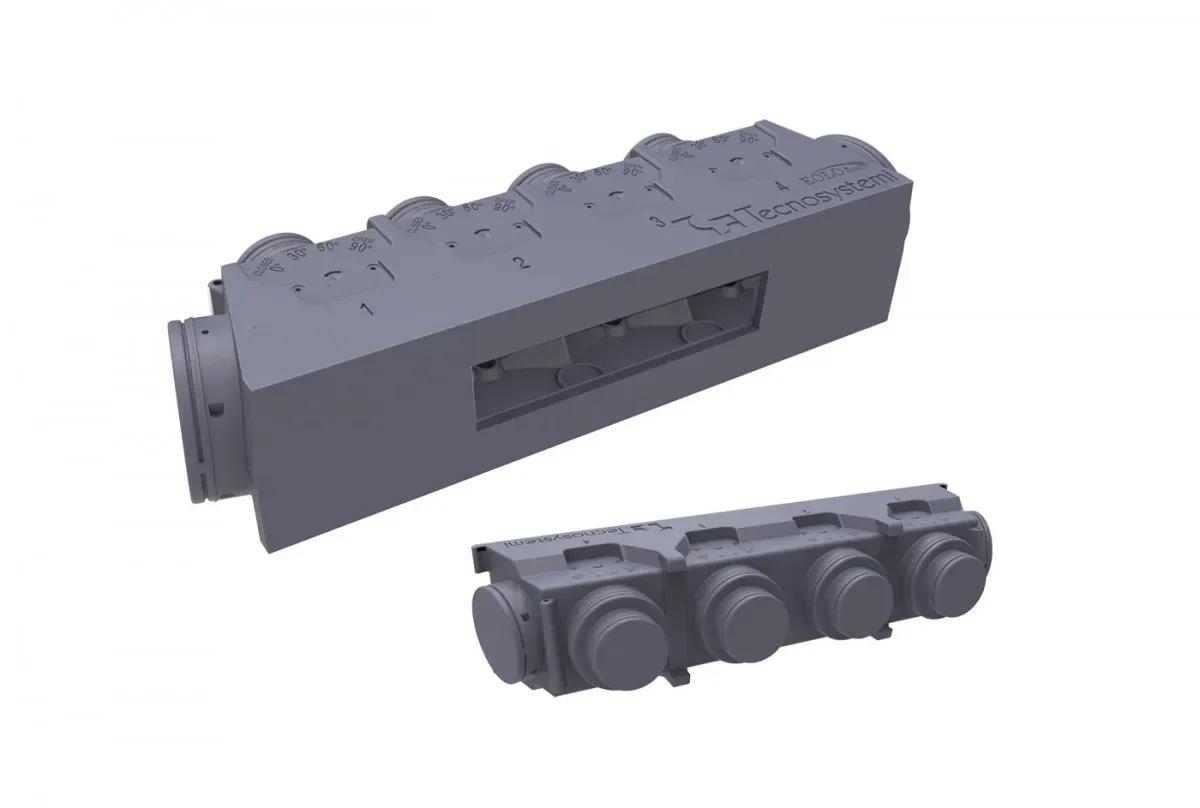

Universal Plenum Kit

Download Spec Sheet

• Made of sintered expanded polystyrene
• Ready for ceiling anchoring via threaded bars
• Thermal insulation, waterproof
• Thermal conductivity: 0.030 / 0.033 W/mK with respect to the EN 12667 / EN 12939 standard
• Resistance to vapor 40 / 70 μ in relation to EN 12086
• Water absorption % volume ≤5 in relation to EN 12087
• Reaction to fire class and according to EN 13501-1:2009
• Thermal performance thickness 30 mm 0.95 m2K/W
• Integrated front and side collar
• Tube of glue
• Aluminum profile for flange supplied
• Plenum-machine coupling with aluminum profile to be cut to size (included in kit)

• Plenum "Eolo Mini"
• 2 aluminum bars for flange
• Glue tube
• Sealing gasket
• Assembly Instructions
